Center your laser nozzle in minutes — measured, not guessed.
The Raytech Laser Nozzle Centering System reads your machine’s own laser beam with image processing and shows the exact X/Y offset from the nozzle center in real time. Adjust, watch the dot move, done. No more tape shots.
- Real-time X/Y deviation
- Works with your own beam
- Adapters for many heads
- 2-year warranty
- Worldwide shipping
Tape shots are slow, wasteful and depend on the operator.
The classic way to center a fiber laser nozzle is to stick tape on the nozzle, fire a pulse, read the burn mark, turn a screw — and repeat. Every operator reads the mark differently, every shot costs time, and a small error you can’t see leads to one-sided dross, uneven kerf and lost cut quality.
After every lens change, nozzle crash or protective window swap, you start over.
Digital optical centering with live feedback.
Mount the device on the cutting head with the right adapter, connect it to your phone by USB, and fire. The app draws the nozzle center and your beam position on a target and shows the offset as numbers. Each turn of a centering screw is reflected instantly — so you know exactly which way to go and when you are on center.
See the step-by-step process →Real machines, real centering
Filmed on production fiber laser cutters. Watch the beam position move to the center of the target as the operator adjusts the head.
Everything you need to center the beam with confidence
Real-time beam position
The beam’s X and Y position relative to the nozzle center is measured and displayed live.
Directional guidance
The system analyzes the deviation from the ideal center and shows which direction the optical adjustment needs to go.
Image-processing analysis
A high-resolution imaging system detects the laser spot and calculates its center and geometry automatically.
X–Y axis measurement
Deviation on both axes is quantified, so alignment becomes a measurable, documented process.
Fast & repeatable
The same measurement criteria for every operator — fewer differences between shifts, less trial and error.
Built for service & maintenance
Check optical centering during maintenance, technical service and production, and adjust based on real numbers.
Tape shot vs. optical nozzle centering
| Tape shot (manual) | Raytech optical centering | |
|---|---|---|
| Feedback | After each shot, by eye | Live, on screen |
| Result | Visual estimate | Numeric X/Y offset |
| Repeatability | Varies by operator | Same criteria every time |
| Adjustment direction | Guess and re-shoot | Shown by the app |
| Consumables | Tape for every shot | None |
| Documentation | None | Measurable result for service records |

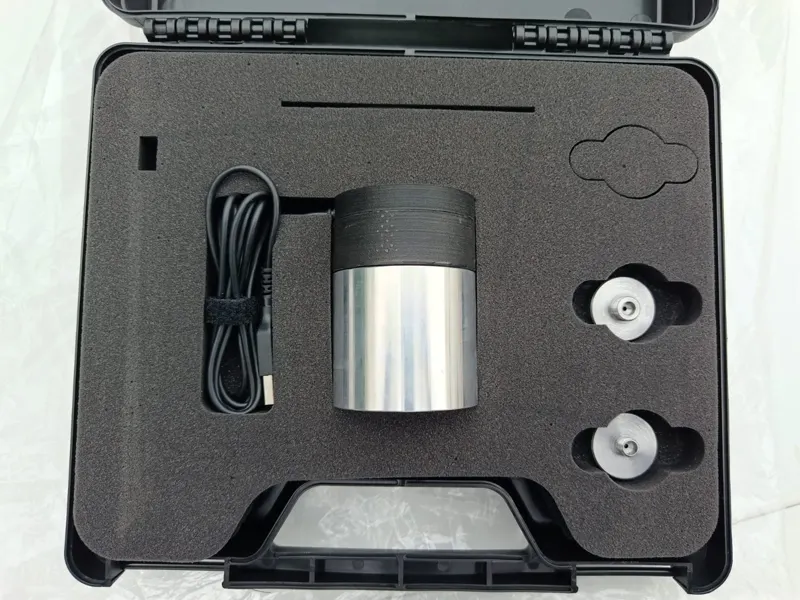

A complete kit in a rugged case
- Optical centering unit with image-processing sensor
- Nozzle adapters for your cutting head
- USB cable for direct connection to your smartphone
- Raytech centering app
- Foam-lined hard carrying case
- 2-year warranty and technical support
Frequently asked questions
What does the nozzle centering system do?
It measures where your fiber laser beam sits relative to the nozzle center and shows the X and Y deviation live on a smartphone screen. You turn the centering screws on the cutting head and watch the beam move to the center in real time — no tape shots, no guessing.
Does it use a separate alignment laser?
No. The system analyzes the machine’s own laser beam with an image-processing camera, so you center the beam you actually cut with.
Which cutting heads is it compatible with?
It is designed for fiber laser cutting heads from different brands, using interchangeable nozzle adapters. It is shown working on a BOCHU (BOCI) head in our videos. Send us your head model and we will confirm the right adapter.
How long does centering take?
Because every adjustment is shown instantly, centering becomes a short, controlled process instead of repeated tape-shot trial and error — you stop as soon as the readout shows the beam on center.
Is there a warranty?
Yes. Every device comes with a 2-year warranty covering manufacturing defects and technical faults, plus after-sales technical support.
Do you ship outside Türkiye?
Yes — we sell and ship worldwide. Request a quote with your country and we will include shipping and delivery time.
Stop guessing. Start measuring.
Tell us your cutting head brand and model — we will confirm the right adapter and send you a quote with shipping to your country.
